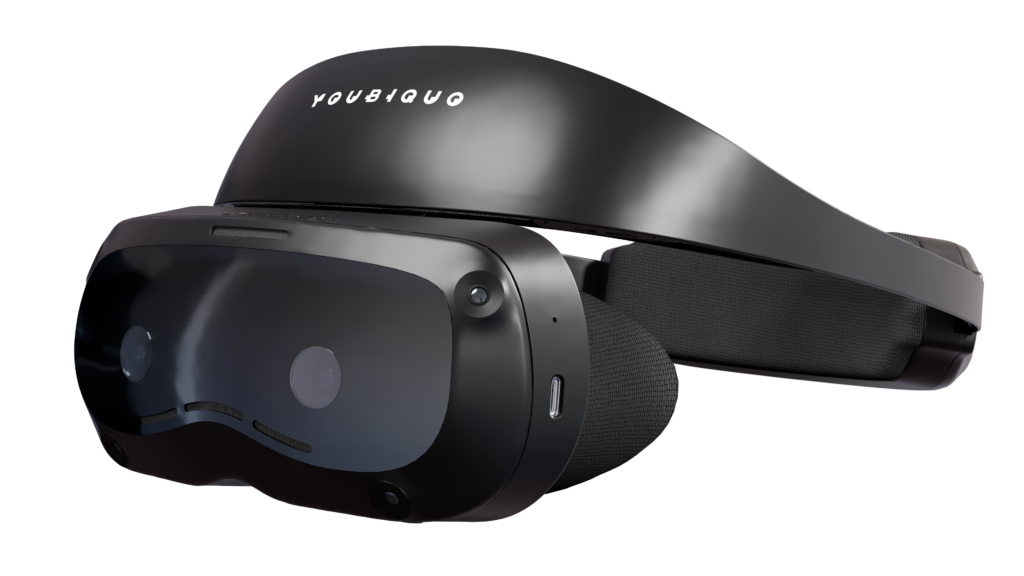

Leonardo XR
Leonardo is an advanced XR headset designed for immersive and interactive training, thanks to its See-Through vision capability via simulation content experiences of Virtual Reality and Augmented Reality.
It allows you to create fully immersive training experiences in VR, or to overlay content in a real environment, where it can interact with physical objects using advanced features such as real-time detection and tracking.
Documentation
Technical Specifications
Processor and Display
Qualcomm Snapdragon XR2 Gen 1
CPU Kryo 585 max 3.1GHz
GPU Adreno 650 587MHz
CPU Kryo 585 max 3.1GHz
GPU Adreno 650 587MHz
Storage (ROM) 128 GB
Memory (RAM) 8 GB
Memory (RAM) 8 GB
5500 mAh battery
QC3.0 charge
QC3.0 charge
Lenses and Display
Pancake lenses
95 - 105° FoV
95 - 105° FoV
Double 2.1" Fast-LCD display
1600x1600 pixel, 1058 PPI @ 72Hz
1600x1600 pixel, 1058 PPI @ 72Hz
Input and Tracking
3-axis gyro + 3-axis acc. sensor
laser proximity sensor
laser proximity sensor
4 global shutter cameras
2 RGB cameras for See-through
2 RGB cameras for See-through
2 HN610 controllers (6DoF)
position accuracy <10mm
ultra-low latency <20ms
position accuracy <10mm
ultra-low latency <20ms
Hand Tracking
Connectivity and Audio
Wi-Fi 6
@2.4GHz, 802.11 b/g/n/ax, 2x2 MIMO
@5GHz, 802.11 a/n/ac/ax, 2x2 MIMO
@2.4GHz, 802.11 b/g/n/ax, 2x2 MIMO
@5GHz, 802.11 a/n/ac/ax, 2x2 MIMO
Bluetooth 5.0
DisplayPort output via USB-C
Built-in dual stereo speakers
Built-in dual microphones
Ergonomics
0-5,00 deg./eye myopia adjustment
59-68mm IPD adjustment
Magnetic detachable cushion
90° flip-up host
90° flip-up host
Weight 436 g
